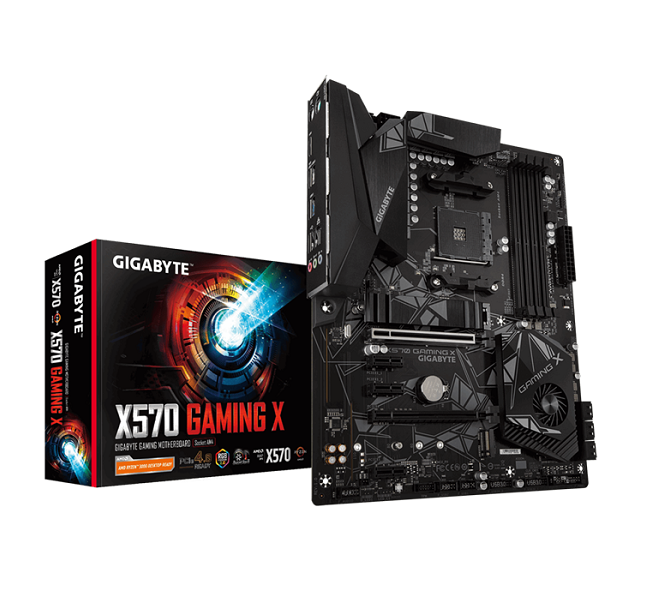

Main Gigabyte X570 GAMING X

Main Gigabyte X570 GAMING X
435

Giá: 4,600,000₫ (Giá bao gồm VAT)

Giá trước đây 4,990,000₫ Tiết kiệm 8%


Điện thoại/Zalo:
0902 332 696
Email đặt hàng:
contact@hoangcodo.com
Địa chỉ:
622/16/5 Cộng Hòa, Phường 13, Quận Tân Binh, TP. Hồ Chí Minh
Địa chỉ:
228 Chi Lăng, Phường Gia Hội, Thành Phố Huế

Số lượng:

Thông tin kỹ thuật

  • Brand: Gigabyte
  • Model: X570 GAMING X
  • Form Factor: ATX
  • CPU Socket Type: AM4
  • CPU Type:  Supports 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
  • Chipset: AMD X570
  • Number of Memory Slots: 4 × 288pin
  • Memory Standard: 3rd Generation AMD Ryzen™ processors:
    Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Maximum Memory Supported: 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Channel Supported: Dual channel memory architecture
  • Multi-Gpu: Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage: Integrated in the CPU (M2A_SOCKET):
    · 3rd Generation AMD Ryzen™ processors:
    1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

    · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

    Integrated in the Chipset (M2B_SOCKET):
    1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)

    * For 3rd Generation AMD Ryzen™ processors only.
    6x SATA 6Gb/s connectors
  • Raid: Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Usb Ports: 4x USB 3.2 Gen 1 ports on the back panel
    4x USB 3.2 Gen 1 ports available through the internal USB headers
    6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Audio: Realtek® ALC887 codec
    High Definition Audio 2/4/5.1-channel
  • Slot: Integrated in the CPU (PCIEX16):
    · 3rd Generation AMD Ryzen™ processors:
    1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    · 2nd Generation AMD Ryzen™ processors:
    1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)
    1x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)

     For 3rd Generation AMD Ryzen™ processors only.
    3x PCI Express x1 slots, supporting PCIe 4.0*/3.0
  • Lan: Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Wireless: None
  • Internal Connectors: 1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    1x CPU fan header
    1x water cooling CPU fan header
    2x system fan headers
    1x CPU cooler LED strip/RGB LED strip header
    2x addressable LED strip headers
    2x RGB LED strip headers
    6x SATA 6Gb/s connectors
    2 M.2 Socket 3 connectors
    1x front panel header
    1x front panel audio header
    2x USB 3.2 Gen 1 headers
    2x USB 2.0/1.1 headers
    1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1x Clear CMOS jumper
    1x Q-Flash Plus button
  • Back Panel Ports: 1x PS/2 keyboard port
    1x PS/2 mouse port
    1x HDMI port
    4x USB 3.2 Gen 1 ports
    2x USB 2.0/1.1 ports
    1x RJ-45 port
    3x audio jacks
  • LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Dimensions: 30.5 x 24.4 cm
  • Operating System: Support for Windows 10 64-bit
  • Warranty: Chính hãng 3 năm
  • Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)
