- Brand: Gigabyte
- Model: X570 AORUS PRO
- Form Factor: ATX
- CPU Socket Type: AM4
- CPU Type: Supports 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
- Chipset: AMD X570
- Number of Memory Slots: 4 × 288pin
- Memory Standard: 3rd Generation AMD Ryzen™ processors:
Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules - Maximum Memory Supported: 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Channel Supported: Dual channel memory architecture
- Multi-Gpu: Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies - Storage: Integrated in the CPU (M2A_SOCKET):
· 3rd Generation AMD Ryzen™ processors:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
· 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
* For 3rd Generation AMD Ryzen™ processors only.
6 x SATA 6Gb/s connectors - Raid: Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. - Usb Ports: Integrated in the CPU:
3x USB 3.2 Gen 1 ports on the back panel
1x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel
* For 3rd Generation AMD Ryzen™ processors only.
Chipset:
1x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
1x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 2 Type-A port (red) on the back panel
4x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hubs:
8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) - Audio: Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio.
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out - Slot: Integrated in the CPU (PCIEX16/PCIEX8):
· 3rd Generation AMD Ryzen™ processors:
1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
· 2nd Generation AMD Ryzen™ processors:
1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
1x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4/PCIEX1):
1x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
* For 3rd Generation AMD Ryzen™ processors only.
2x PCI Express x1 slots, supporting PCIe 4.0*/3.0
* For 3rd Generation AMD Ryzen™ processors only. - Lan: Realtek® GbE LAN chip (10/100/1000 Mbit)
- Wireless: None
- Internal Connectors: 1 x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x CPU fan header
1x water cooling CPU fan header
3x system fan headers
2x system fan/water cooling pump headers
2x addressable LED strip headers
2x RGB LED strip headers
1x CPU cooler LED strip/RGB LED strip header
2x M.2 Socket 3 connectors
6x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C™ port, with USB 3.2 Gen 2 support
2x USB 3.2 Gen 1 headers
2x USB 2.0/1.1 headers
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x Clear CMOS jumper
2x temperature sensor headers
1x Q-Flash Plus button
1x Thunderbolt™ add-in card connector (Only rev1.1 available) - Back Panel Ports: 1x HDMI port
1x USB Type-C™ port, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
*For 3rd Generation AMD Ryzen™ processors only.
1x USB 3.2 Gen 2 Type-A port (red)
3x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports
1x RJ-45 port
1x optical S/PDIF Out connector
5x audio jacks - LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Dimensions: 30.5 x 24.4 cm
- Operating System: Support for Windows 10 64-bit
- Warranty: Chính hãng 3 năm
- Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)

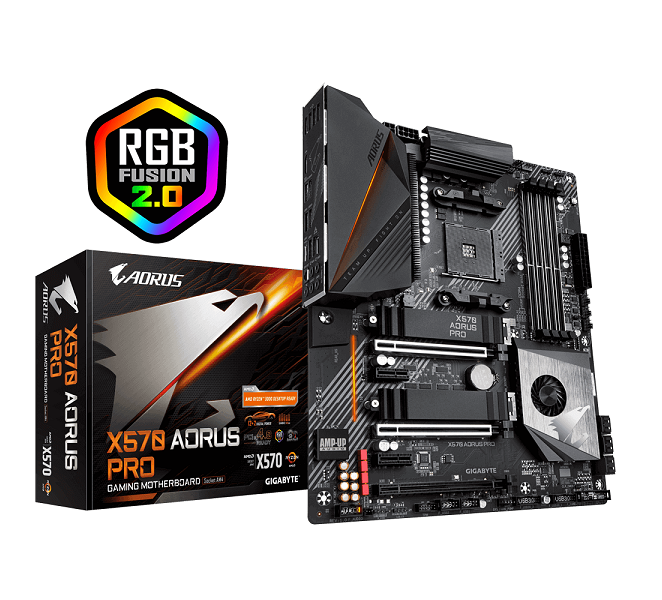

Main Gigabyte X570 AORUS PRO
Giá: 7,150,000₫ (Giá bao gồm VAT)
Giá trước đây 7,370,000₫ Tiết kiệm 3%
