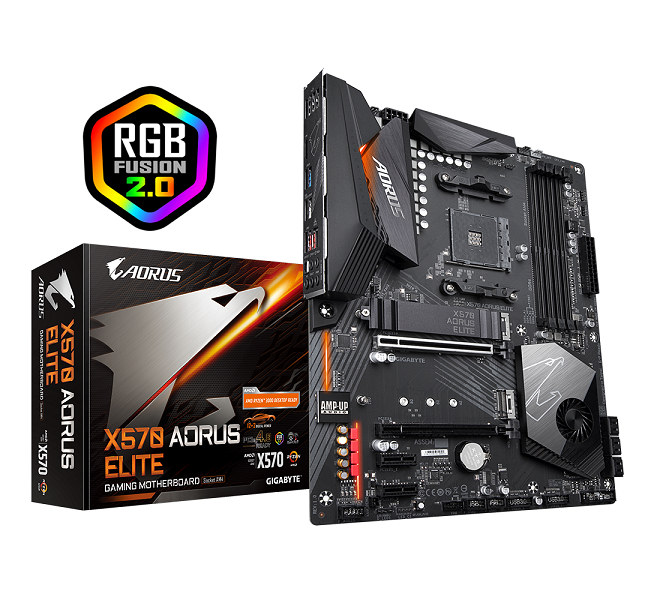

Main Gigabyte X570 AORUS ELITE

Main Gigabyte X570 AORUS ELITE
677

Giá: 5,750,000₫ (Giá bao gồm VAT)

Giá trước đây 5,990,000₫ Tiết kiệm 5%


Điện thoại/Zalo:
0902 332 696
Email đặt hàng:
contact@hoangcodo.com
Địa chỉ:
622/16/5 Cộng Hòa, Phường 13, Quận Tân Binh, TP. Hồ Chí Minh
Địa chỉ:
228 Chi Lăng, Phường Gia Hội, Thành Phố Huế

Số lượng:

Thông tin kỹ thuật

  • Brand: Gigabyte
  • Model: X570 AORUS ELITE
  • Form Factor: ATX
  • CPU Socket Type: AM4
  • CPU Type:  Supports 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
  • Chipset: AMD X570
  • Number of Memory Slots: 4 × 288pin
  • Memory Standard: 3rd Generation AMD Ryzen™ processors:
    Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Maximum Memory Supported: 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Channel Supported: Dual channel memory architecture
  • Multi-Gpu: Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage: Integrated in the CPU (M2A_SOCKET):
    · 3rd Generation AMD Ryzen™ processors:
    1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

    · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

    Integrated in the Chipset (M2B_SOCKET):
    1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)

    * For 3rd Generation AMD Ryzen™ processors only.
    6x SATA 6Gb/s connectors
  • Raid: Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Usb Ports: 44x USB 3.2 Gen 1 ports on the back panel
    1x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
    2x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4x USB 3.2 Gen 1 ports available through the internal USB headers
    8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Audio: Realtek® ALC1200 codec
    High Definition Audio 2/4/5.1/7.1-channel
    Support for S/PDIF Out
  • Slot: Integrated in the CPU (PCIEX16):
    · 3rd Generation AMD Ryzen™ processors:
    1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    · 2nd Generation AMD Ryzen™ processors:
    1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1x PCI Express x16 slot, supporting PCIe 3.0 and running at x8

    Integrated in the Chipset (PCIEX4/PCIEX1):
    1x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)

    * For 3rd Generation AMD Ryzen™ processors only.
    2x PCI Express x1 slots, supporting PCIe 4.0*/3.0
  • Lan: Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Wireless: None
  • Internal Connectors: 1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    1x CPU fan header
    1x water cooling CPU fan header
    2x system fan headers
    2x addressable LED strip headers
    2x RGB LED strip headers
    1x CPU cooler LED strip/RGB LED strip header
    2x M.2 Socket 3 connectors
    6x SATA 6Gb/s connectors
    1x front panel header
    1x front panel audio header
    1x USB Type-C™ port, with USB 3.2 Gen 2 support
    2x USB 3.2 Gen 1 headers
    2x USB 2.0/1.1 headers
    1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1x Clear CMOS jumper
    1x Q-Flash Plus button
  • Back Panel Ports: 4x USB 2.0/1.1 ports
    1x HDMI port
    4x USB 3.2 Gen 1 ports
    2x USB 3.2 Gen 2 Type-A ports (red)
    1x RJ-45 port
    1x optical S/PDIF Out connector
    5x audio jacks
  • LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Dimensions: 30.5 x 24.4 cm
  • Operating System: Support for Windows 10 64-bit
  • Warranty: Chính hãng 3 năm
