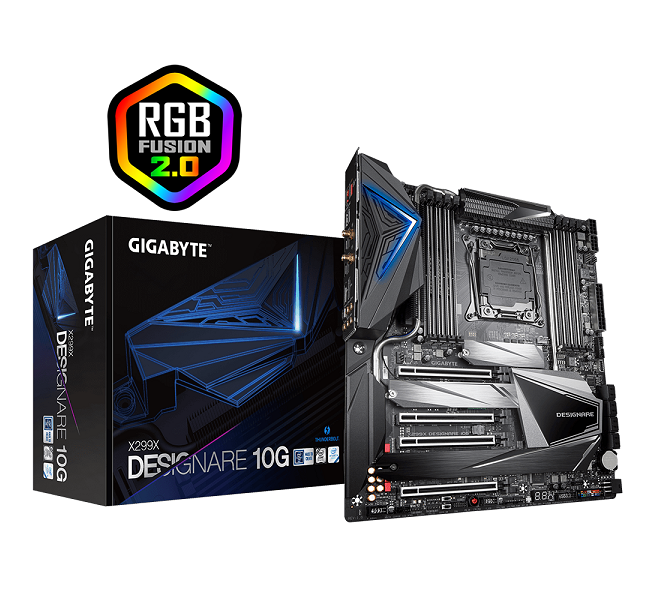

Main Gigabyte X299x Designare 10G , Main Gigabyte X299X Designare 10G, Công ty Hoàng Cố Đô

Brand: Gigabyte
Model: X299X Designare 10G
Form Factor: E-ATX
CPU Socket Type: LGA 2066
CPU Type: Support for Intel® Core™ i7-7800X and above X series processors/ Intel® Core™ i9 X series processors in the LGA2066 package
Chipset: Intel® X299 Express Chipset
Number of Memory Slots: Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
Memory Standard: Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules
Maximum Memory Supported: Intel® Core™ X series 48-lane processors: 8x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Intel® Core™ X series 44-lane/28-lane processors: 8x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
Channel Supported: Dual Channel Memory Architecture
Multi-Gpu: Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies
Storage: CPU: 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

Chipset:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
6x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)

ASMedia® SATA 6Gb/s controller: 2x SATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only
Raid: The M2M connector must work with an Intel® VROC Upgrade Key to support RAID configuration.
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX8_1, M.2, and SATA connectors.
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Usb Ports: Chipset+Intel® Thunderbolt™ 3 Controller:
2x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

Chipset+ASMedia® USB 3.2 Gen 2 controller:
1x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header

Chipset+Genesys USB 3.2 Gen 1 hub:
3x USB 3.2 Gen 1 ports on the back panel

Chipset:
5x USB 3.2 Gen 1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
2x USB 2.0/1.1 ports available through the internal USB header
Audio: Realtek® ALC1220-VB codec
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out
Slot: Intel® Core™ X series 48-lane processors:
2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

Intel® Core™ X series 44-lane processors:
2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1x PCI Express x16 slot, running at x8 (PCIEX8_1)
1x PCI Express x16 slot, running at x4 (PCIEX8_2)

Intel® Core™ X series 28-lane processors:
1x PCI Express x16 slot, running at x16 (PCIEX16_1)
1x PCI Express x16 slot, running at x8 (PCIEX16_2)
1x PCI Express x16 slot, running at x4 (PCIEX8_2)
Lan: Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Wireless: IIntel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth 5
Internal Connectors: 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x VGA_PW power connector
1x CPU fan header
1x water cooling CPU fan header
4x system fan headers
2x system fan/water cooling pump headers
2x addressable LED strip headers
2x RGB LED strip headers
3x M.2 Socket 3 connectors
8x SATA 6Gb/s connectors
1x Intel® VROC Upgrade Key header
1x front panel header
1x front panel audio header
1x USB Type-C™ header, with USB 3.2 Gen 2 support
2x USB 3.2 Gen 1 headers
1x USB 2.0/1.1 header
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x noise detection header
1x Clear CMOS jumper
1x power button
1x reset button
1x Clear CMOS button
2x temperature sensor headers
2x BIOS switches
Back Panel Ports: 2x DisplayPort In ports
2x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
2x SMA antenna connectors (2T2R)
4x USB 3.2 Gen 1 ports
2x RJ-45 ports
1x optical S/PDIF Out connector
5x audio jacks
LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
Dimensions: 30.5 x 27.5 cm
Operating System: Support for Windows® 10 64-bit
Warranty: Chính hãng 3 năm
