Trang chủ› Gigabyte› Mainboard›

Mainboard Gigabyte

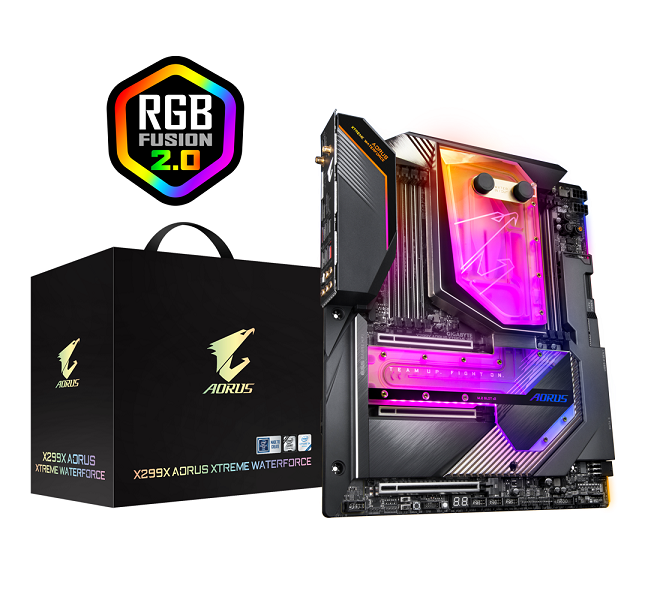

Main Gigabyte X299X Aorus Xtreme Waterforce

Main Gigabyte X299X Aorus Xtreme Waterforce
429

Giá: 46,250,000₫ (Giá bao gồm VAT)

Giá trước đây 46,990,000₫ Tiết kiệm 2%


Điện thoại/Zalo:
0902 332 696
Email đặt hàng:
contact@hoangcodo.com
Địa chỉ:
622/16/5 Cộng Hòa, Phường 13, Quận Tân Binh, TP. Hồ Chí Minh
Địa chỉ:
228 Chi Lăng, Phường Gia Hội, Thành Phố Huế

Số lượng:

Thông tin kỹ thuật

  • Brand: Gigabyte
  • Model: Aorus Xtreme Waterforce
  • Form Factor: XL-ATX
  • CPU Socket Type: LGA 2066
  • CPU Type: Support for Intel® Core™ i7-7800X and above X series processors/Intel® Core™ i9 X series processors in the LGA2066 package
  • Chipset: Intel® X299 Express Chipset
  • Number of Memory Slots: Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
  • Memory Standard: Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules
  • Maximum Memory Supported: Intel® Core™ X series 48-lane processors: 8x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
    Intel® Core™ X series 44-lane/28-lane processors: 8x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
  • Channel Supported: Dual Channel Memory Architecture
  • Multi-Gpu: Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage: 2x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
    8x SATA 6Gb/s connectors
  • Raid: The M2P and M2Q connectors must work with an Intel® VROC Upgrade Key to support RAID configuration.
    * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Usb Ports:Chipset+Intel® Thunderbolt™3 Controller:
    2x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

    Chipset+2 ASMedia® USB 3.2 Gen 2 Controllers:
    2x USB Type-C™ ports with USB 3.2 Gen 2 support, available through the internal USB headers
    2x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    Chipset:
    6x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    2x USB 2.0/1.1 ports on the back panel

    Chipset+2 USB 2.0 Hubs:
    6x USB 2.0/1.1 ports available through the internal USB headers
  • Audio: 2x Realtek® ALC1220-VB codecs
    2x ESS SABRE9218 DAC chips
    High Definition Audio 2/4/5.1/7.1-channel
    Support for S/PDIF Out
  • Slot: Intel® Core™ X series 48-lane processors: 3x PCI Express x16 slots, running at x16

    Intel® Core™ X series 44-lane processors:
    2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
    1x PCI Express x16 slot, running at x8 (PCIEX16_3)

    Intel® Core™ X series 28-lane processors:
    1x PCI Express x16 slot, running at x16 (PCIEX16_1)
    1x PCI Express x16 slot, running at x8 (PCIEX16_2)
  • Lan: 1x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
    1x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN2)
  • Wireless: Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
    Bluetooth 5
  • Internal Connectors: 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x VGA_PW power connector
    1x CPU fan header
    1x water cooling CPU fan header
    1x water cooling kit CPU LED header (LED_CPU)
    1x water cooling kit Chipset LED header (LED_PCH)
    4x system fan headers
    2x system fan/water cooling pump headers
    2x addressable LED strip headers
    2x RGB LED strip headers
    2x M.2 Socket 3 connectors
    8x SATA 6Gb/s connectors
    1x Intel® VROC Upgrade Key header
    1x front panel header
    1x front panel audio header
    2x USB Type-C™ ports, with USB 3.2 Gen 2 support
    2x USB 3.2 Gen 1 headers
    3x USB 2.0/1.1 headers
    1x noise detection header
    1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1x Clear CMOS jumper
    1x power button
    1x OC Ignition button
    1x OC button
    1x reset button
    1x Clear CMOS button
    2x temperature sensor headers
    2x BIOS switches
  • Back Panel Ports: 2x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
    2x USB 3.2 Gen 2 Type-A ports (red)
    2x USB 3.2 Gen 1 ports
    2x USB 2.0/1.1 ports
    2x DisplayPort In ports
    2x RJ-45 ports
    2x SMA antenna connectors (2T2R)
    1x optical S/PDIF Out connector
    5x audio jacks
  • LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, support Addressable LED & RGB LED Strips
  • Dimensions: 32.5 x 27.5 cm
  • Operating System: Support for Windows® 10 64-bit
  • Warranty: Chính hãng 3 năm
  • Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)
