- Brand: Gigabyte
- Model: X299 UD4 Pro
- Form Factor: ATX
- CPU Socket Type: LGA 2066
- CPU Type: Support for Intel® Core™ X series processors in the LGA2066 package
- Chipset: Intel® X299 Express Chipset
- Number of Memory Slots: 8 × 288pin
- Memory Standard: Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Maximum Memory Supported: 8x DDR4 DIMM sockets supporting up to 128 GB of system memory.
4x DDR4 DIMM sockets supporting up to 64 GB of system memory. - Channel Supported: Dual Channel Memory Architecture
- Multi-Gpu: Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies - Storage: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8x SATA 6Gb/s connectors - Raid:
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors - Usb Ports: 2x USB 3.1 Gen 2 Type-A ports (red) on the back panel
10x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
4x USB 2.0/1.1 ports available through the internal USB headers - Audio: Realtek® ALC1220 codec
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out - Slot: 2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1x PCI Express x16 slot, running at x8 (PCIEX8)
2x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) - Lan: 1x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
1x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2) - Wireless: None
- Internal Connectors: 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x water cooling CPU fan header
2x system fan headers
1x 3 Amp fan/water cooling pump header
1x digital LED strip header
1x digital LED strip power select jumper
2x RGB (RGBW) LED strip extension cable headers
2x M.2 Socket 3 connectors
8x SATA 6Gb/s connectors
1x Intel® VROC Upgrade Key header
1x front panel header
1x front panel audio header
1x S/PDIF Out header
2x USB 3.1 Gen 1 headers
2x USB 2.0/1.1 headers
1x Thunderbolt™ add-in card connector
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x temperature sensor header
1x Clear CMOS jumper - Back Panel Ports: 1x PS/2 keyboard/mouse port
2x USB 3.1 Gen 2 Type-A ports (red)
6x USB 3.1 Gen 1 ports
1x RJ-45 port
6x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) - LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION support Digital LED and RGBW Light Strips
- Dimensions: 30.5 x 24.4 cm
- Operating System: Support for Windows® 10 64-bit
- Warranty: Chính hãng 3 năm
- Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)

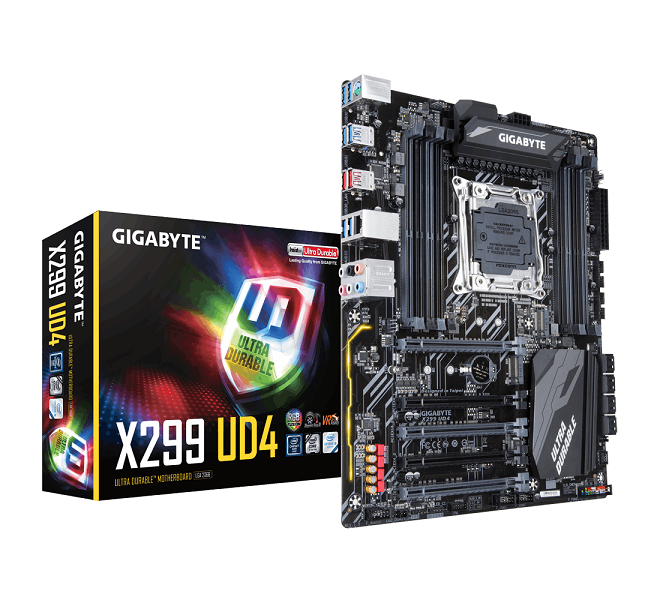

Main Gigabyte X299 UD4 Pro
Giá: 5,995,000₫ (Giá bao gồm VAT)
Giá trước đây 6,390,000₫ Tiết kiệm 7%
