- Brand: Gigabyte
- Model: TRX40 AORUS XTREME
- Form Factor: XL-ATX
- CPU Socket Type: sTRX4
- CPU Type: Support 3rd Generation AMD Ryzen™ Threadripper™ processors
- Chipset: AMD TRX40
- Number of Memory Slots: 8 × 288pin
- Memory Standard: Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Maximum Memory Supported: 8x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
- Channel Supported: Quad Channel Memory Architecture
- Multi-Gpu: Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies - Storage: CPU:
1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
1x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SOCKET)
8x SATA 6Gb/s connectors (SATA3 0~7)
ASMedia® SATA 6Gb/s Controller:
2x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only - Raid: Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. - Usb Ports: CPU:
4x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
2x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
4x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+1 USB 2.0 Hub:
4x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extention cable)
Chipset+ASMedia® USB 3.2 Gen 2 Controller:
1x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 2 Type-A port (red) on the back panel - Audio: Realtek® ALC4050H codec+Realtek® ALC1220-VB codec (rear panel audio)
Realtek® ALC4050H codec+ESS SABRE9218 DAC (front panel audio)
Support for DTS:X® Ultra
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out - Slot: 2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) - Lan: Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
- Wireless: INTEL® WI-FI 6 AX200
1. Wi-fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 ghz dual-band
2. Bluetooth 5.0 - Internal Connectors: 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1x OC_PEG power connector
1x CPU fan header
1x water cooling CPU fan header
2x system fan headers
3x system fan/water cooling pump headers
2x addressable LED strip headers
2x RGB LED strip headers
4x M.2 Socket 3 connectors
10x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C™ header, with USB 3.2 Gen 2 support
2x USB 3.2 Gen 1 headers
1x USB 2.0/1.1 header
1x GIGABYTE add-in card connector
1x noise detection header
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x power button
1x reset button
2x temperature sensor headers
2x BIOS switches
Voltage Measurement Points - Back Panel Ports: 1x Q-Flash Plus button
1x Clear CMOS button
2x SMA antenna connectors (2T2R)
1x USB Type-C™ port, with USB 3.2 Gen 2 support
7x USB 3.2 Gen 2 Type-A ports (red)
2x RJ-45 ports
1x optical S/PDIF Out connector
5x audio jacks - LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Dimensions: 32.5 x 27.5 cm
- Operating System: Support for Windows 10 64-bit
- Warranty: Chính hãng 3 năm
- Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)

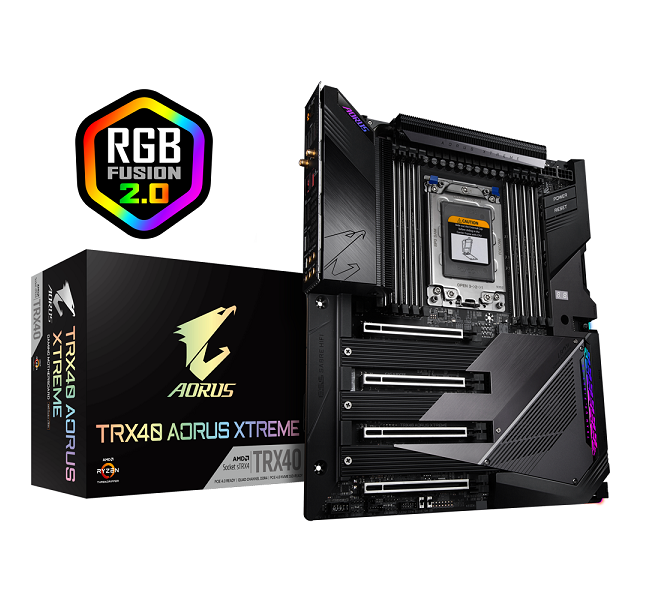

Main Gigabyte TRX40 AORUS XTREME
Giá: 25,990,000₫ (Giá bao gồm VAT)
Giá trước đây 26,220,000₫ Tiết kiệm 1%
