- Brand: Gigabyte
- Model: TRX40 AORUS PRO WIFI
- Form Factor: ATX
- CPU Socket Type: sTRX4
- CPU Type: Support 3rd Generation AMD Ryzen™ Threadripper™ processors
- Chipset: AMD TRX40
- Number of Memory Slots: 8 × 288pin
- Memory Standard: Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Maximum Memory Supported: 8x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
- Channel Supported: Quad Channel Memory Architecture
- Multi-Gpu: Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
Support for NVIDIA® Quad-GPU SLI™ and3-Way/2-Way NVIDIA® SLI™ technologies - Storage: CPU:
1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
8 x SATA 6Gb/s connectors - Raid: Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. - Usb Ports: CPU:
3x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
Chipset:
2x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1x USB Type-C™ port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header
4x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) - Audio: Realtek® ALC4050H codec+ ALC1220-VB codec
Support for DTS:X® Ultra
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out - Slot: 2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
1x PCI Express x1 slot - Lan: Intel® GbE LAN chip (10/100/1000 Mbit)
- Wireless: INTEL® WI-FI 6 AX200
1. Wi-fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 ghz dual-band
2. Bluetooth 5.0 - Internal Connectors: 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x CPU fan header
1x water cooling CPU fan header
2x system fan headers
4x system fan/water cooling pump headers
2x addressable LED strip headers
2x RGB LED strip headers
3x M.2 Socket 3 connectors
8x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C™ header, with USB 3.2 Gen 1/Gen 2 support
2x USB 3.2 Gen 1 headers
2x USB 2.0/1.1 headers
1x GIGABYTE add-in card connector
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
2x temperature sensor headers
1x Clear CMOS jumper - Back Panel Ports: 4x USB 2.0/1.1 ports
1x Q-Flash Plus button
5x USB 3.2 Gen 2 Type-A ports (red)
1x USB Type-C™ port, with USB 3.2 Gen 2 support
1x RJ-45 port
2x SMA antenna connectors (2T2R)
1x optical S/PDIF Out connector
5x audio jacks - LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Dimensions: 30.5 x 24.4 cm
- Operating System: Support for Windows 10 64-bit
- Warranty: Chính hãng 3 năm
- Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)

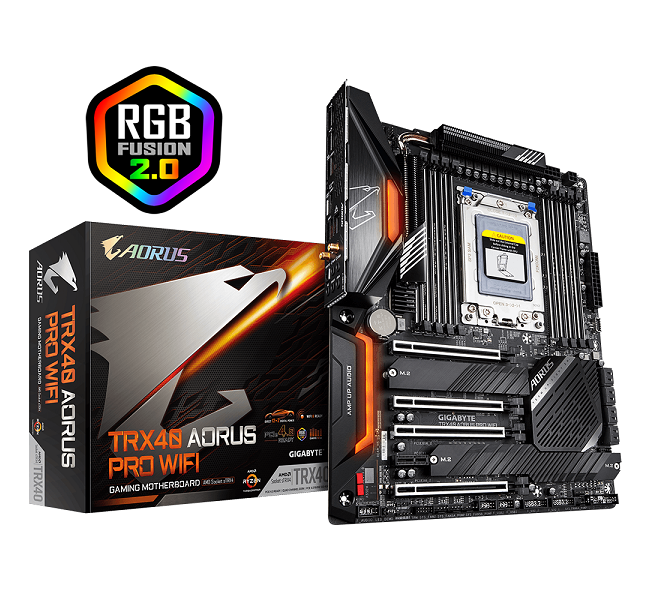

Main Gigabyte TRX40 AORUS PRO WIFI
Giá: 12,290,000₫ (Giá bao gồm VAT)
Giá trước đây 12,470,000₫ Tiết kiệm 2%
