- Brand: Gigabyte
- Model: B450M GAMING
- Form Factor: ATX
- CPU Socket Type: AM4
- CPU Type: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Chipset: AMD B450
- Number of Memory Slots: 2 × 288pin
- Memory Standard: Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
- Maximum Memory Supported: 2x DDR4 DIMM sockets supporting up to 32 GB of system memory
- Channel Supported: Dual channel memory architecture
- Multi-Gpu: None
- Storage: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
4x SATA 6Gb/s connectors - Raid: Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. - Usb Ports: 2x USB 3.1 Gen 1 ports available through the internal USB header
6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
4x USB 3.1 Gen 1 ports on the back panell - Audio: Realtek® ALC887 codec
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out - Slot: 1x PCI Express x16 slot, running at x16
2x PCI Express x1 slot - Lan: Realtek® GbE LAN chip (10/100/1000 Mbit)
- Wireless: None
- Internal Connectors: 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
2x system fan headers
1x M.2 Socket 3 connector
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x S/PDIF Out header
1x CPU cooler LED strip/RGB LED strip header
1x USB 3.1 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1x speaker header
1x serial port header
1x Clear CMOS jumper
1x chassis intrusion header - Back Panel Ports: 1x PS/2 keyboard port
1x PS/2 mouse port
1x D-Sub port
1x DVI-D port
1x HDMI port
4x USB 3.1 Gen 1 ports
2x USB 2.0/1.1 ports
1x RJ-45 port
3x audio jacks - LED Lighting: None
- Dimensions: 24.4 x 20.5 cm
- Operating System: Support for Windows 10 64-bit
Support for Windows 7 64-bit - Warranty: Chính hãng 3 năm
- Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)

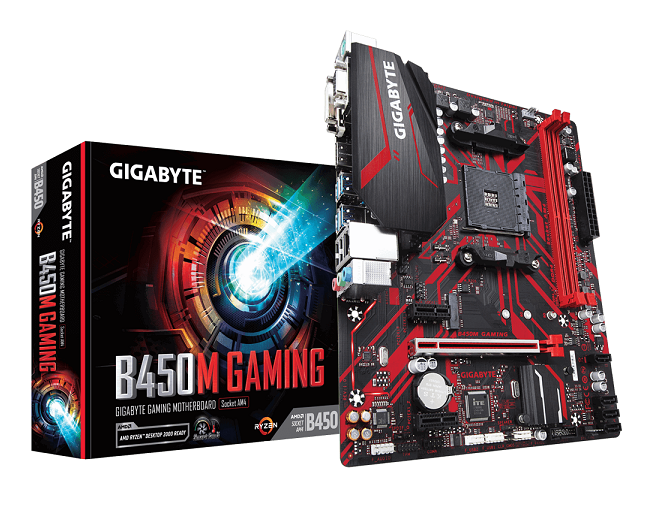

Main Gigabyte B450M GAMING
Giá: 1,700,000₫ (Giá bao gồm VAT)
Giá trước đây 1,790,000₫ Tiết kiệm 6%
