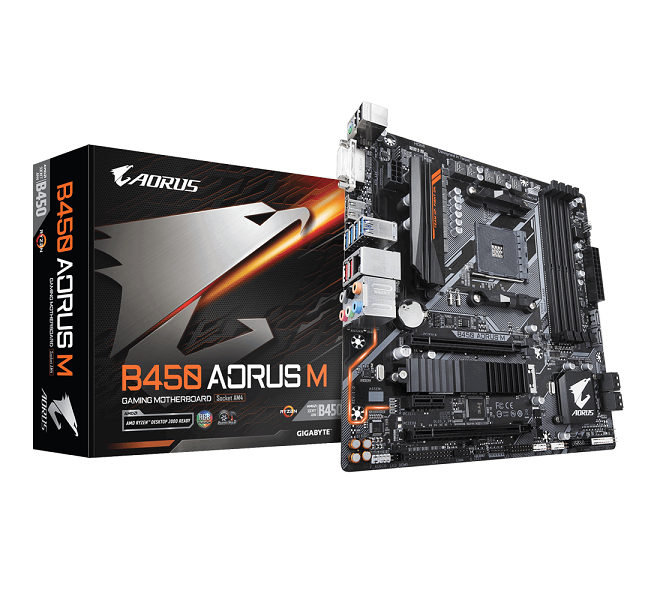

Main Gigabyte B450 AORUS-M

Main Gigabyte B450 AORUS-M
792

Giá: 2,350,000₫ (Giá bao gồm VAT)

Giá trước đây 2,590,000₫ Tiết kiệm 10%


Điện thoại/Zalo:
0902 332 696
Email đặt hàng:
contact@hoangcodo.com
Địa chỉ:
622/16/5 Cộng Hòa, Phường 13, Quận Tân Binh, TP. Hồ Chí Minh
Địa chỉ:
228 Chi Lăng, Phường Gia Hội, Thành Phố Huế

Số lượng:

Thông tin kỹ thuật

  • Brand: Gigabyte
  • Model: B450 AORUS-M
  • Form Factor: Micro ATX
  • CPU Socket Type: AM4
  • CPU Type: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Chipset: AMD B450
  • Number of Memory Slots: 4 × 288pin
  • Memory Standard: Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
  • Maximum Memory Supported: 4x DDR4 DIMM sockets supporting up to 64 GB of system memory
  • Channel Supported: Dual channel memory architecture
  • Multi-Gpu: Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    6x SATA 6Gb/s connectors
  • Raid: Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Usb Ports: 2x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    2x USB 3.1 Gen 1 ports available through the internal USB header
    6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    4x USB 3.1 Gen 1 ports on the back panel
  • Audio: Realtek® ALC892 codec
    High Definition Audio 2/4/5.1/7.1-channel
    Support for S/PDIF Out
  • Slot: 1x PCI Express x16 slot, running at x16 (PCIEX16)
    1x PCI Express x16 slot, running at x4 (PCIEX4)
    1x PCI Express x1 slot
  • Lan: Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Wireless: None
  • Internal Connectors: 1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    1x CPU fan header
    2x system fan headers
    1x M.2 Socket 3 connector
    6x SATA 6Gb/s connectors
    1x CPU cooler LED strip/RGB LED strip header
    1x RGB (RGBW) LED strip header
    2x digital LED strip headers
    2x digital LED strip power select jumpers
    1x front panel header
    1x front panel audio header
    1x S/PDIF Out header
    1x USB 3.1 Gen 1 header
    2x USB 2.0/1.1 headers
    1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    1x serial port header
    1x parallel port header
    1x Clear CMOS jumper
  • Back Panel Ports: 1x PS/2 keyboard/mouse port
    1x DVI-D port
    1x HDMI port
    2x USB 3.1 Gen 2 Type-A ports (red)
    4x USB 3.1 Gen 1 ports
    2x USB 2.0/1.1 ports
    1x RJ-45 port
    6x audio jacks
  • LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Dimensions: 24.4 x 24.4 cm
  • Operating System: Support for Windows 10 64-bit
    Support for Windows 7 64-bit
  • Warranty: Chính hãng 3 năm
  • Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)
