Trang chủ› Gigabyte› Mainboard›

Mainboard Gigabyte

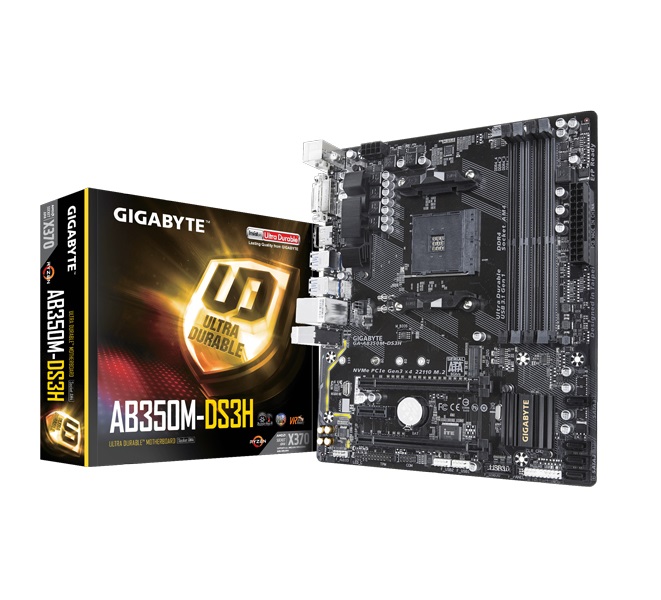

Main Gigabyte AB350M-DS3H

Main Gigabyte AB350M-DS3H
458

Giá: 1,300,000₫ (Giá bao gồm VAT)

Giá trước đây 1,510,000₫ Tiết kiệm 14%


Điện thoại/Zalo:
0902 332 696
Email đặt hàng:
contact@hoangcodo.com
Địa chỉ:
622/16/5 Cộng Hòa, Phường 13, Quận Tân Binh, TP. Hồ Chí Minh
Địa chỉ:
228 Chi Lăng, Phường Gia Hội, Thành Phố Huế

Số lượng:

Thông tin kỹ thuật

  • Brand: Gigabyte
  • Model: AB350M-DS3H
  • Form Factor: ATX
  • CPU Socket Type: AM4
  • CPU Type: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Chipset: AMD X370
  • Number of Memory Slots: 4 × 288pin
  • Memory Standard: Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
  • Maximum Memory Supported: 4x DDR4 DIMM sockets supporting up to 64 GB of system memory
  • Channel Supported: Dual channel memory architecture
  • Multi-Gpu: None
  • Storage: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
    4x SATA 6Gb/s connectors
  • Raid: Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Usb Ports: 2x USB 3.1 Gen 1 ports available through the internal USB header
    8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    4x USB 3.1 Gen 1 ports on the back panel
  • Audio: Realtek® ALC887 codec
    High Definition Audio 2/4/5.1/7.1-channel
    Support for S/PDIF Out
  • Slot: 1x PCI Express x16 slot, running at x16 (PCIEX16)
    1x PCI Express x16 slot, running at x4 (PCIEX4)
    1x PCI Express x1 slot
  • Lan: Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Wireless: None
  • Internal Connectors: 1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    1x CPU fan header
    1x system fan header
    1x M.2 Socket 3 connector
    4x SATA 6Gb/s connectors
    1x front panel header
    1x front panel audio header
    1x S/PDIF Out header
    1x RGB LED strip header
    1x USB 3.1 Gen 1 header
    2x USB 2.0/1.1 headers
    1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    1x serial port header
    1x Clear CMOS jumper
  • Back Panel Ports: 1x PS/2 keyboard/mouse port
    1x DVI-D port
    1x HDMI port
    4x USB 3.1 Gen 1 ports
    4x USB 2.0/1.1 ports
    1x RJ-45 port
    3x audio jacks
  • LED Lighting: None
  • Dimensions: 24.4 x 21.5 cm
  • Operating System: Support for Windows 10 64-bit
    Support for Windows 7 64-bit
  • Warranty: Chính hãng 3 năm
  • Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)
