- Brand: Gigabyte
- Model: A320M-S2H
- Form Factor: Micro ATX
- CPU Socket Type: AM4
- CPU Type: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
- Chipset: AMD A320
- Number of Memory Slots: 2 × 288pin
- Memory Standard: Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
- Maximum Memory Supported: 2x DDR4 DIMM sockets supporting up to 32 GB of system memory
- Channel Supported: Dual channel memory architecture
- Multi-Gpu: None
- Storage:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
4x SATA 6Gb/s connectors - Raid: Support for RAID 0, RAID 1, RAID 5, and RAID 10: 1x U.2 connector
- Usb Ports: 2x USB 3.1 Gen 1 ports available through the internal USB header
6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
4x USB 3.1 Gen 1 ports on the back panel - Audio: Realtek® ALC887 codec
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out - Slot: 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) - Lan: Realtek® GbE LAN chip (10/100/1000 Mbit)
- Wireless: None
- Internal Connectors: 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x system fan header
1x M.2 Socket 3 connector
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x S/PDIF Out header
1x USB 3.1 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1x speaker header
1x Clear CMOS jumper
1x chassis intrusion header - Back Panel Ports: 1x PS/2 keyboard port
1x PS/2 mouse port
1x D-Sub port
1x DVI-D port
1x HDMI port
4x USB 3.1 Gen 1 ports
2x USB 2.0/1.1 ports
1x RJ-45 port
3x audio jacks (Line In, Line Out, Mic In) - LED Lighting: None
- Dimensions: 24.4 x 19.5 cm
- Operating System: Support for Windows 10 64-bit
Support for Windows 7 64-bit - Warranty: Chính hãng 3 năm
- Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)

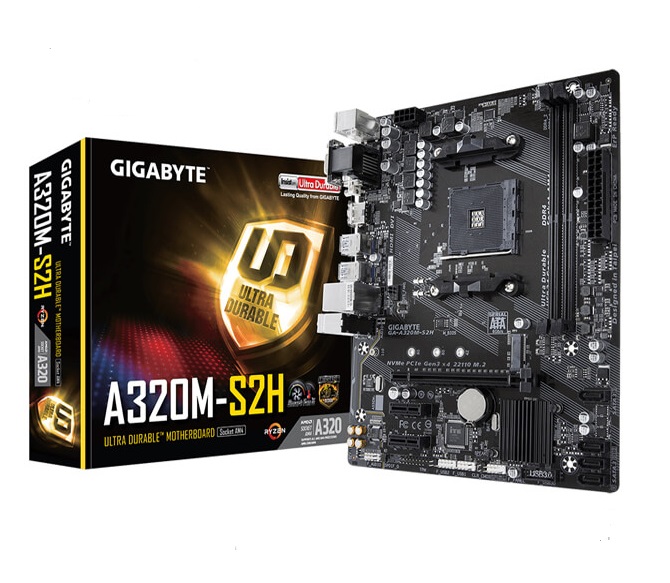

Main Gigabyte A320M-S2H
Giá: 1,295,000₫ (Giá bao gồm VAT)
Giá trước đây 1,490,000₫ Tiết kiệm 14%
